Product Description

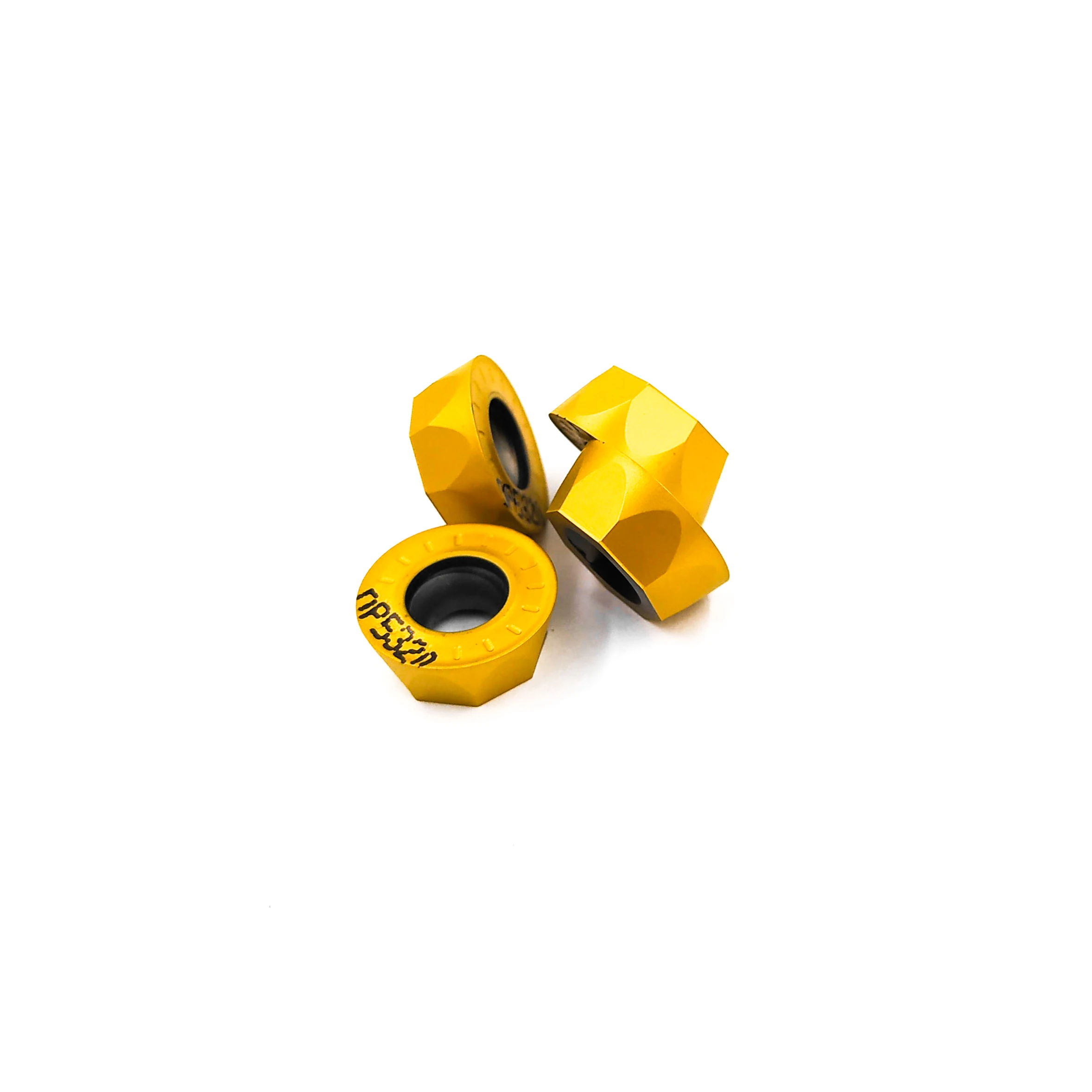

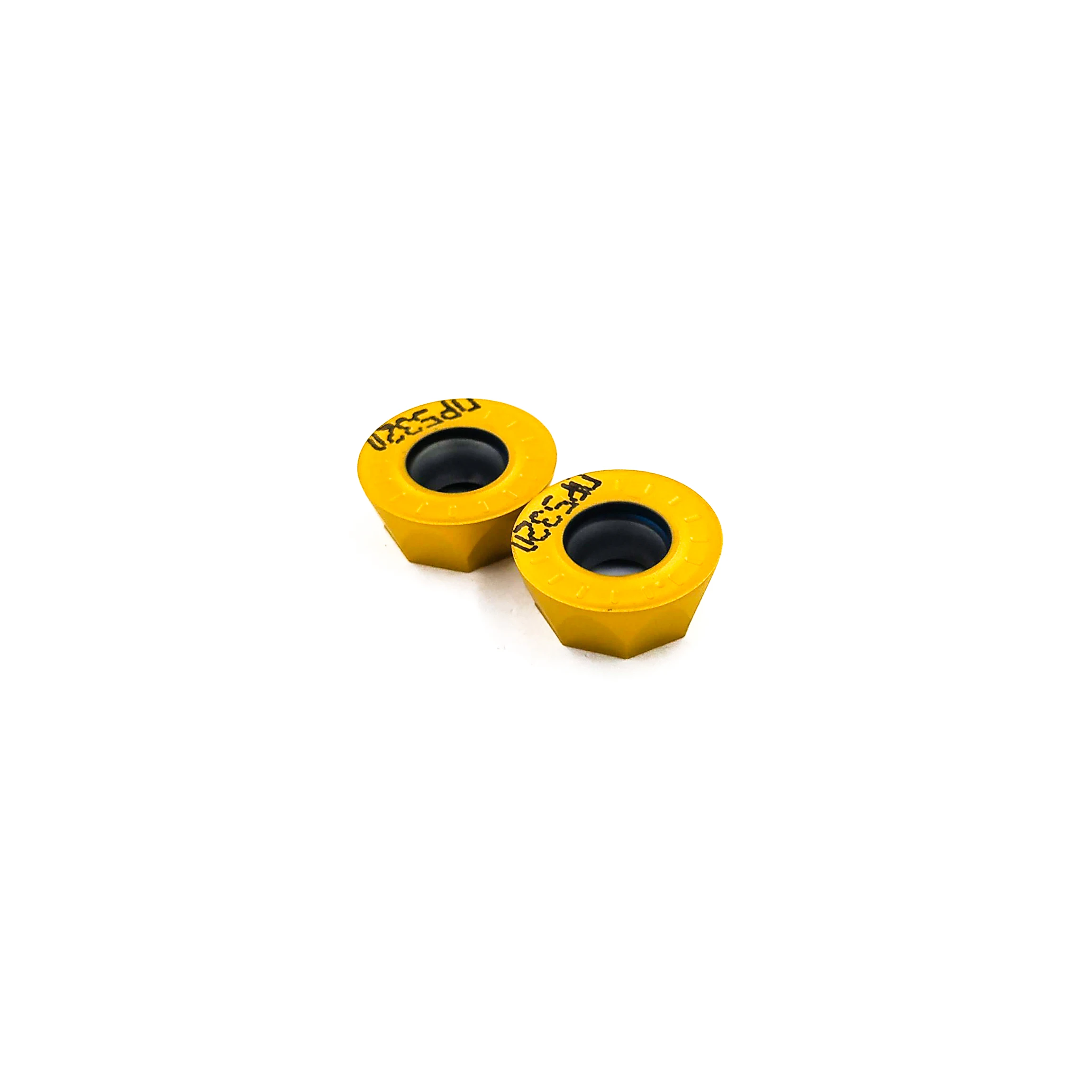

CNC blade is the floorboard of the indexable turning blades, is the mainstream of modern metal cutting applications of products are mainly used in metal cutting milling cutting cutting thread turning areas such as the material can be divided into the coating blade metal ceramic blade ceramic knife carbide blade super-hard etc. Its characteristic is high efficiency high wear-resisting, than traditional welding blade alloy blade processing efficiency more than four times as coating technology advances, the key technology of wear-resistant high temperature resistant breakthrough will further improve the efficiency and reduce the processing cost.
Grade
| Grade | Performance |
| YBC151 | High wear resistance of the matrix and MT-TiCN, thick Al2O3 and TiN coating. |
| YBC152 | Thick TiCN and Al2O3 coating |
| YBC251 | tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
| YBC252 | Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
| YBC351 | Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
| YBG102 | nc-TiAN coating and fine-grained matrix. |
| YBG202 | nc-TiAN coating and fine-grained matrix. |
| YBG205 | Added abrasion resistance and high temperature rare elements ultrafine TiAlN based nano-coating. High layer hardness and excellent resistance to high temperature provide effective protection for the cutting edge. |
| YBG302 | nc-TiAN coating and flexible cemented carbide matrix. |
| YBM151 | Special organizational structure and TiCN, thin Al2O3 and TiN coating. |
| YBM251 | Good toughness and strength matrix and TiCN, thin Al2O3 and TiN coating. |
| YBM253 | With the advance extra fine grain nanometer coating technology, match up with the high toughness gradient matrix. |
| YBD052 | CVD coating(extra thick Al2O3 & thick TiCN), hard matrix. |
| YBD102 | CVD coating (thick Al2O3 & thick TiCN) , hard matrix. |
| YBD152 | CVD coating (thick Al2O3 & thick TiCN), hard matrix, it is anti-stripping. |
| YBD252 | CVD coating (middle thick Al2O3 & thick TiCN), hard matrix. |
| YNG151 | Uniform particle refining organizational ceramal alloy, homogenizing organizational & ring form phase structure, Strengthen bond phase,grain boundary composition design. |
| YNG151C | Physics weather deposit (PVD) coating, high toughness ceramal matrix. |
| YD101 | Fine particle hardness phase WC and bond phase Co. |
| YD201 | Middle particle hardness phase WC and bond phase Co. |
Application
CNC turning and milling tungsten carbide tool products are widely used in:
l Automobile manufacturing,
l Mold manufacturing,
l Aviation industry,
l Defense industry,
l Heavy industry and many other fields.
We can produce various types of tungsten carbide tool blades according to different custom drawings. We can provide a complete set of solutions for the processing field.
Features
1.Over 20 year’s production experience
2.Has been awarded the quality system certification of ISO9001:2008
3.The brand “HGalloytool” has been entitled Hunan’s famous trademark.
4.Professional Technicians and Strict QC system
5.Excellent team and the best technical service
6.Perfect pre-sale, sale and after-sales service.
Our Service
1. Feedback within 24 hours;
2. Good English communication;
3. Professional suggestion on product;
4. Good training export sales person;
5. Skilled in tungsten carbide sell;
6. Could accept all payment terms of T/T(both in advanced and after shipment), D/P, D/A, L/C, western union, paypal and etc.
7. MOQ 5kgs for sintered blank;
Packaging & Shipping
A. standard packaging
1).Plastic box with foam inside and carton outside.
2).The carton has foam inside and carton outside.
3).Inner box/inner packing material, outer plywood box (heavy duty product).
Customizable packaging: according to customer requirements for special packaging.
FAQ
Q1: Are you a factory or a trading company?
A: We are a factory. We have been focusing on Tungsten Carbide for over 20 years.
Q2:What is your principle for the samples?
A: We offer free samples if you are willing to pay the freight.
Q3:What is your delivery time?
A: Generally it is 5 to 7 days if your required goods are in stock, otherwise it takes 20 to 30 days when there is no stock.
Q4:Do you have any test reports or certificates?
A: Yes, we can offer certificate of ISO9000:2008, we also report our test results for your reference.
Q5: Do you provide after-sale service?
A: Yes. So if you find any problem after using our cutting tools, please do not hesitate to tell us, we’ll help you to solve it as soon as possible. Your any feedback to products is our way to improvement
Q6: What should I do before contacting?
A: You can provide specific dimensions or drawings, and tell us the quantity of each item, and your application of this item. Other special requirements is also available.
Q7:How to contact us?
A: Directly contact us from inquiry, or by whatsapp or wechat. Other ways you can also provide us.
